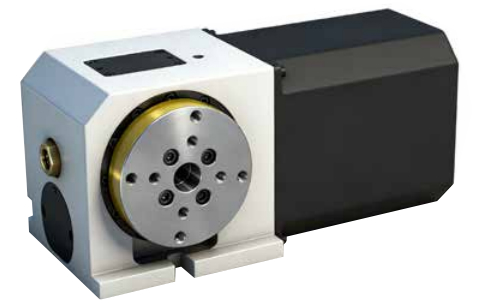

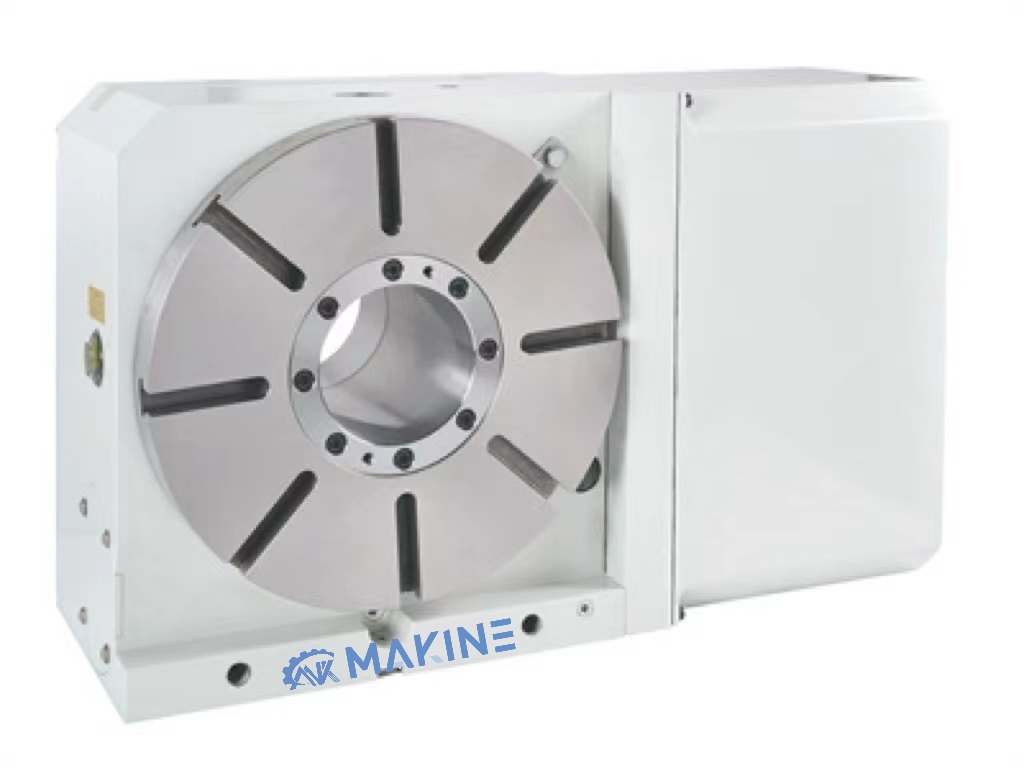

RX-NC-80

The Roller Driver transmission uses the arc surface indexing principle, which iscurrently the most accurate motion control method. The work piece is composed of an input shaft (curved index roller)and a roller (output shaft). The roller groove surface on the input shaft meshes with the outer ring surface of the driven rollerelement on the roller in line contact, so that to drive the wheel (the worktable) to rotate. The driven roller element utilizes internal roller bearings to transmit torque during rotation.This working principle guarantees zero backlash,excellent workingaccuracy and working efficiency,and effectively avoids the loss of internal parts,and provides a lasting high-precision working state.

Categories: ,

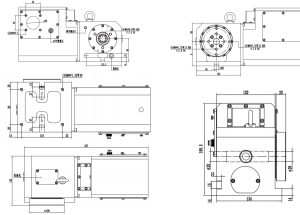

Model Unit RX-NC80
Worktable diameter mm φ100
Center height mm 80
Center hole diameter Front-end diameter mm φ20H7
Through hole mm φ20H7
Plate locking screw mm M8*P1.25
Guide block width mm 14H7
Loading capacity (Radial direction) kg 20
Loading capacity (Axial direction) kg 55
Loading capacity (Tailstock) kg 55
Servo motor SYNTEC S08-AM3 Motor interface
FANUC βis4 口90
MITSUBISHI HG-105S 口90
Reduction ratio 1:22 1:24
Maximum setting unit r.p.m 250
Minimum setting unit deg 0.001°
Indexing accuracy sec ±30
Bi-directional repeat accuracy sec 12
Allowable cutting torque kgf-m 15
Clamp type Air brake
Input pressure kg-cm2 6
Tightening Torque kg-m 20
Product Weight kg 20
