VM Universal Two-linear-one-box-guideway Vertical Milling Machine

VM Series Vertical Machining Center

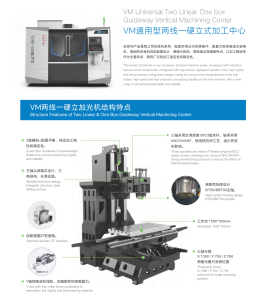

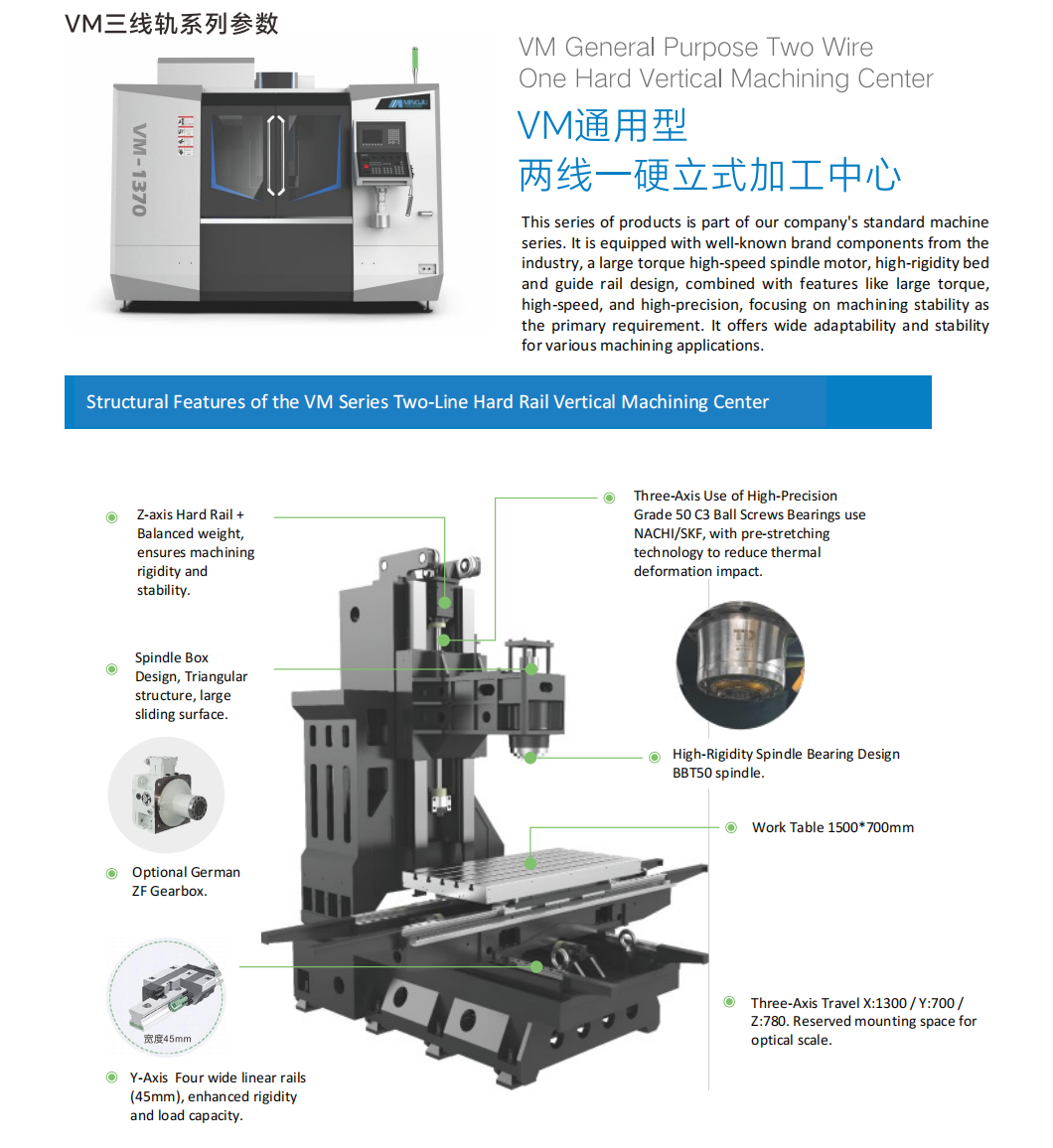

This series of products is our company’s standard machine series. It is equipped with famous brand components in the industry, equipped with high-torque high-speed spindle motor, high-rigidity bed and rail design, taking into account the features of high torque, high speed and high precision, with processing stability as the main appeal , has a wide range of processing adaptability and stability.

Categories: ,

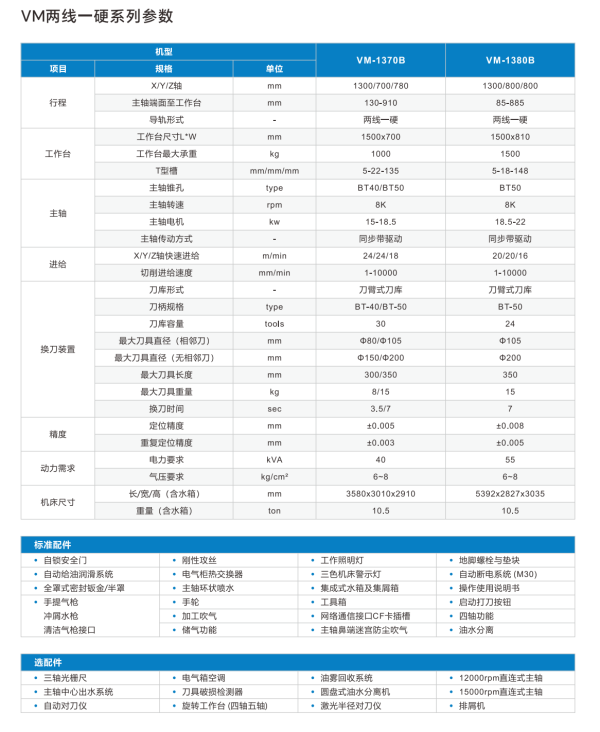

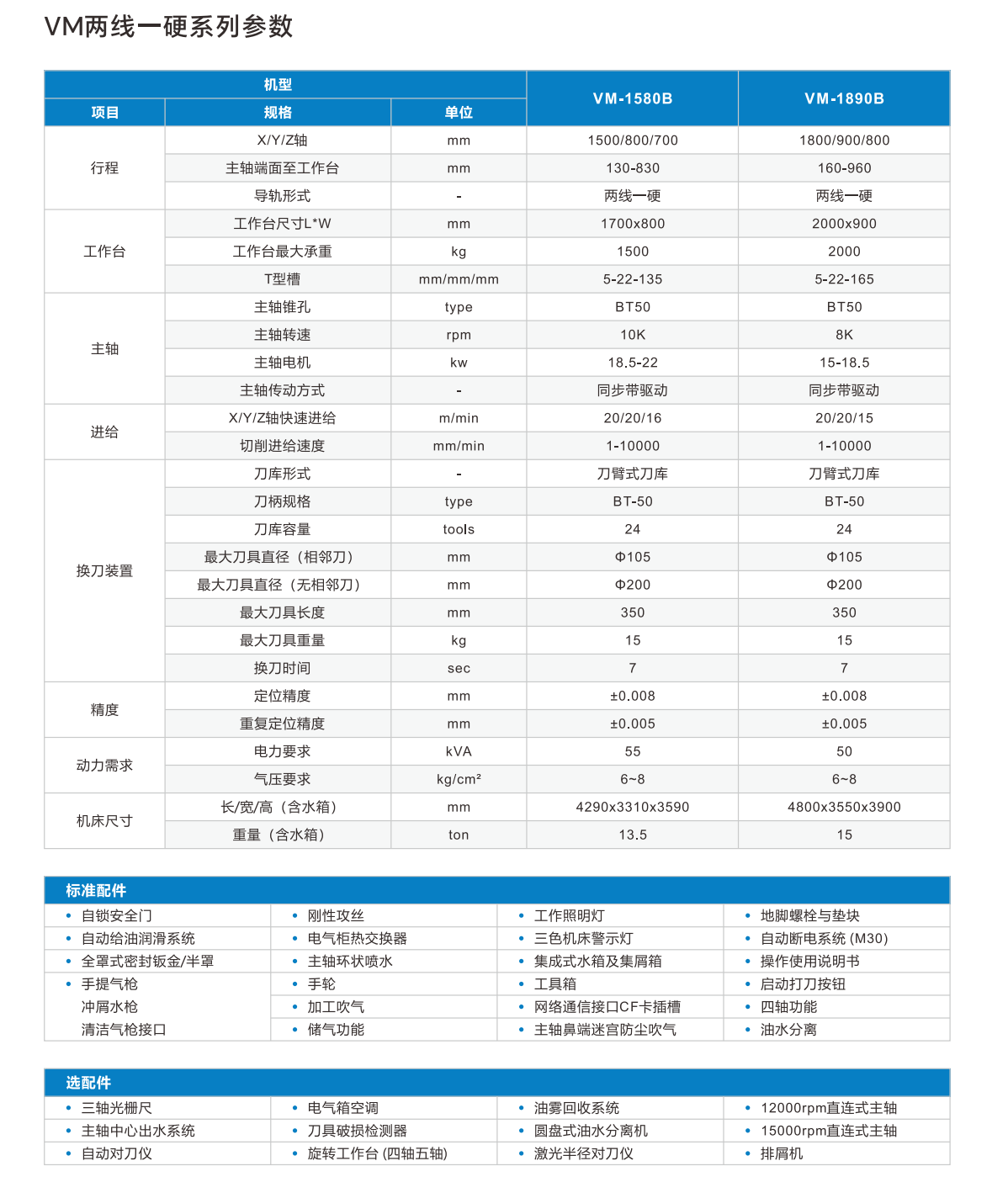

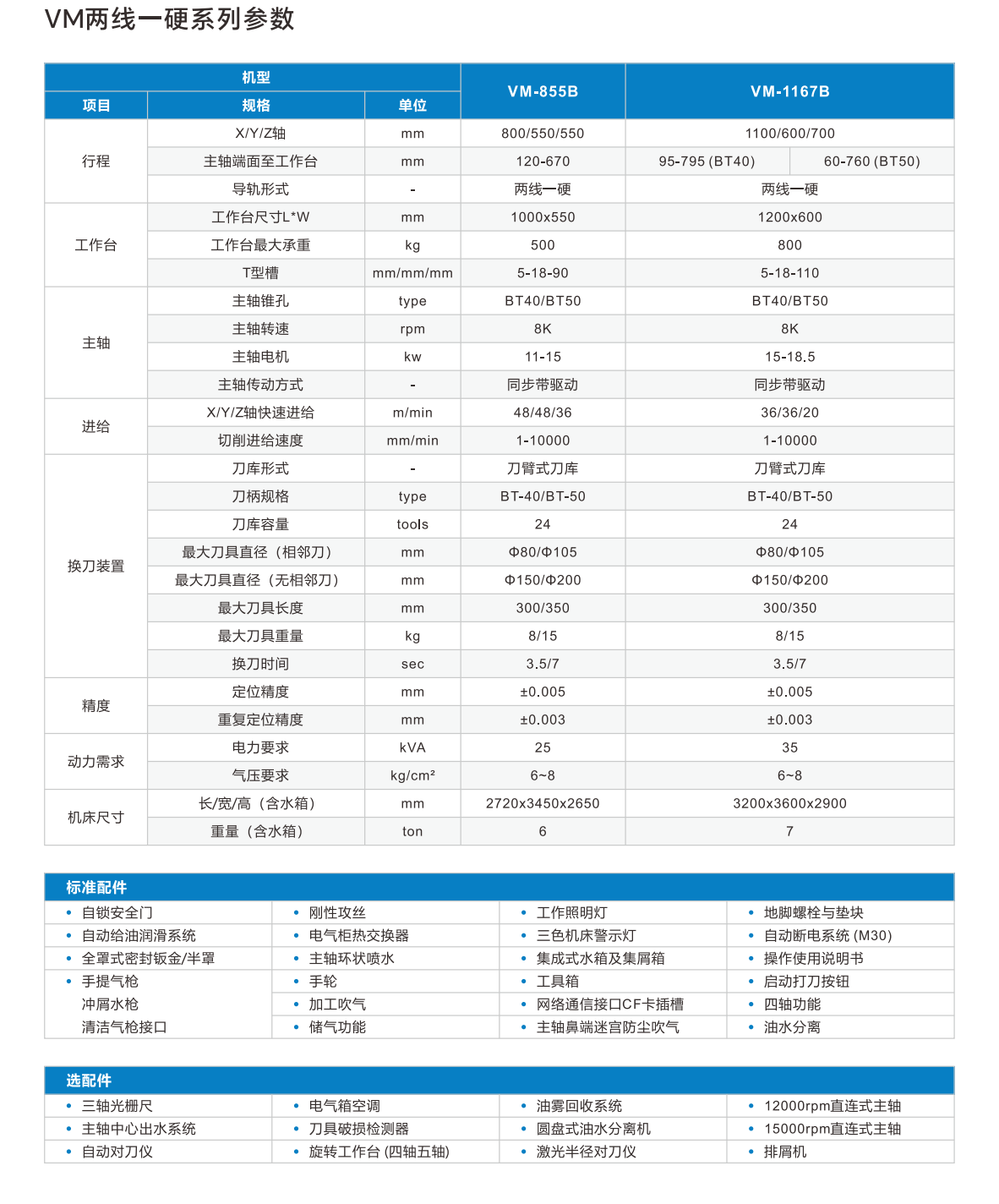

Item Specification Unit VM-855B VM-1167B VM-1370B VM-1380B VM-1580B VM-1890B
Travel X/Y/Z Axis mm 800/550/550 1100/600/700 1300/700/780 1300/800/800 1500/800/700 1800/900/800
Distance from Spindle Nose to Worktable mm 120-670 60-760 130-910 85-885 130-830 160-960
Guideway Type – Two Linear &One Box Guideway
Worktable Worktable Size (L*W) mm 1000×550 1200×600 1500×700 1500×810 1700×800 2000×900
Max. Worktable Load kg 500 800 1000 1500 1500 2000
T-Slot
(Number x size x distance)		 no./mm 5-18-90 5-18-110 5-22-135 5-18-148 5-22-135 5-22-165
Spindle Spindle Taper type BT40 BT50 BT50 BT50 BT50 BT50
Spindle Speed rpm 8k 8k 8k 8k 10k 8k
Spindle Motor Power kw 11-15 15-18.5 15-18.5 18.5-22 18.5-22 15-18.5
Spindle Drive Type – Belts Belts Belts Belts Belt Belt
Feed X/Y/Z Axis Rapid Feed m/min 48/48/36 36/36/20 24/24/18 20/20/16 20/20/16 20/20/15
Cutting Feed Speed mm/min 1-10000 1-10000 1-10000 1-10000 1-10000 1-10000
Tool Magazine Magazine Type – Disc-type Disc-type Disc-type Disc-type Disc-type Disc-type
Tool Holder Type type BT-40 BT-50 BT-50 BT-50 BT-50 BT-50
Tool Capacity tools 24 24 24/30 24 24 24
Max Tool Diameter
(Adjacent tools)		 mm Φ60 Φ105 Φ105 Φ105 Φ105 Φ105
Max Tool Diameter
(No adjacent tools)		 mm Φ150 Φ200 Φ200 Φ200 Φ200 Φ200
Max Tool Length mm 300 350 350 350 350 350
Max Tool Weight kg 8 15 15 15 15 15
Tool Change Time sec 3.5 7 7 7 7 7
Accuracy Positioning Accuracy mm ±0.005 ±0.005 ±0.005 ±0.005 ±0.008 ±0.008
Repeat Positioning Accuracy mm ±0.003 ±0.003 ±0.003 ±0.003 ±0.005 ±0.005
Power Power Requirement kVA 25 35 40 55 55 50
Air Pressure Requirement kg/cm2 6~8 6~8 6~8 6~8 6~8 6~8
Dimensions Length/Width/Height
(Including water tank)		 mm 2720x3450x2650 3200x3600x2900 3580x3010x2910 5392x2827x3035 4290x3310x3590 4800x3550x3900
Weight (Including water tank) ton 6 7 10.5 9.5 13.5 15
